Intro to Programming & Data Viz

Jill P. Naiman

Summer 2020

Lecture 6

Last time

What is data viz?
What do we have to consider when we do data viz?
Conceptual overview of topics in data viz
Practice more with Python

last time we started thinking a bit about data viz in some seriousness and we got some practice reading & plotting data and telling a story with our data over the weekend

This time

Colors - what are they really?
Color mapping - mapping data to colors
Visual Encoding in general

this time we are going to talk about how we encode information visually and pay special attension to how we do this with color

As such, we'll need an intro to color theory

TOPIC 1: What is color?

How Do Colors Work?

Rods (low-light) and cones (color) mediate vision. Humans have about 20 times as many rods (120 million) as cones (6 million).

Cones see in the colors red, green and blue.

so here is a little slice of you inner eye and you can see the rods and cones that are responsible for seeing gray-ish (low light) and in color (cones)

How Do Colors Work?

Rods (low-light) and cones (color) mediate vision. Humans have about 20 times as many rods (120 million) as cones (6 million).

Cones see in the colors red, green and blue.

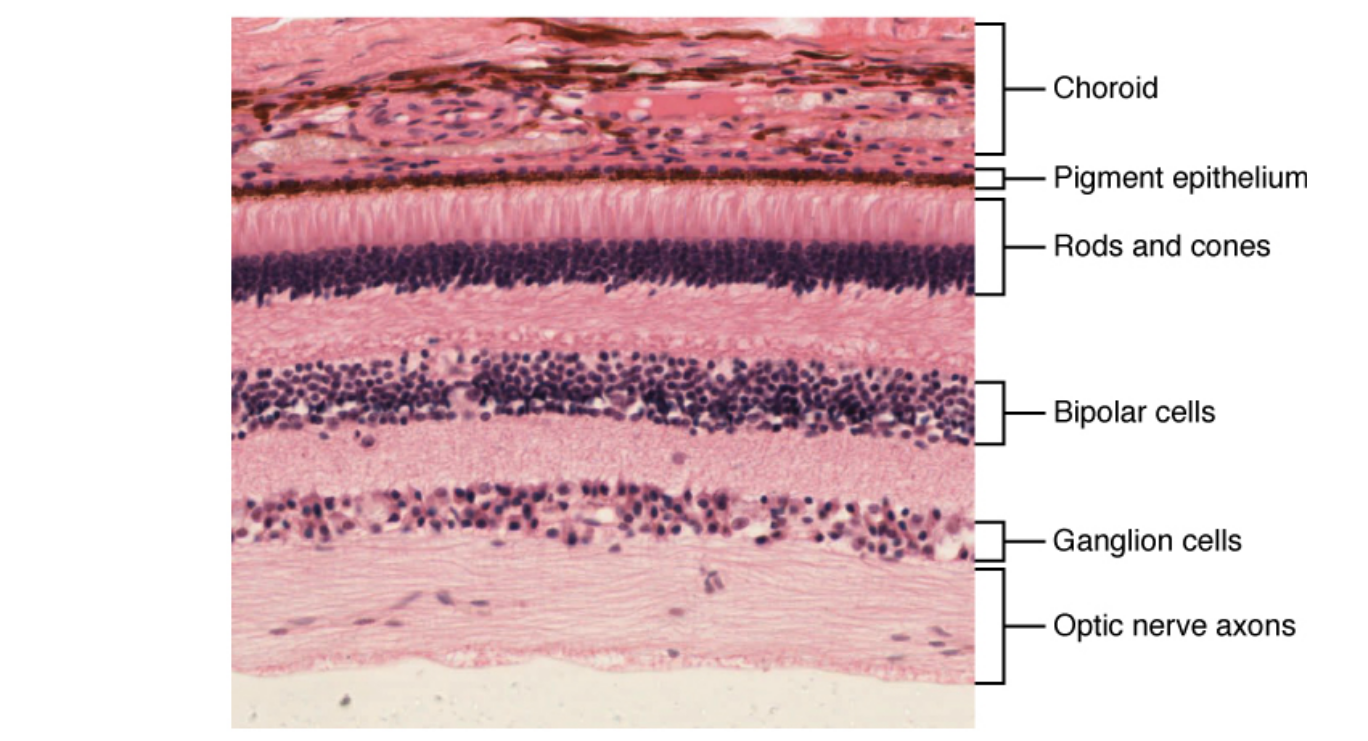

here is that image again with an actual bit of the eye shown - the back of the eye is where the optic nerve is & the front is where the choroid is

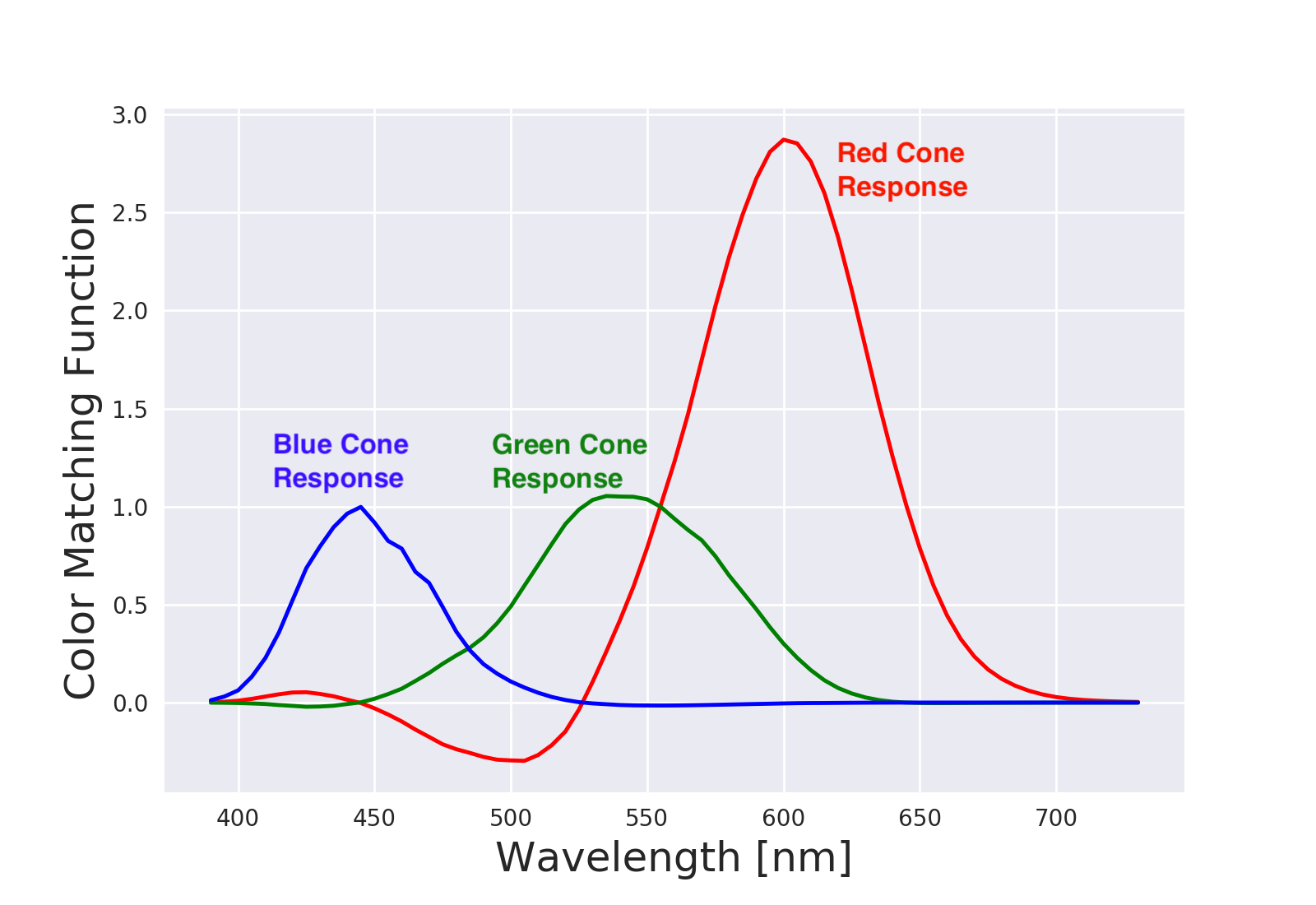

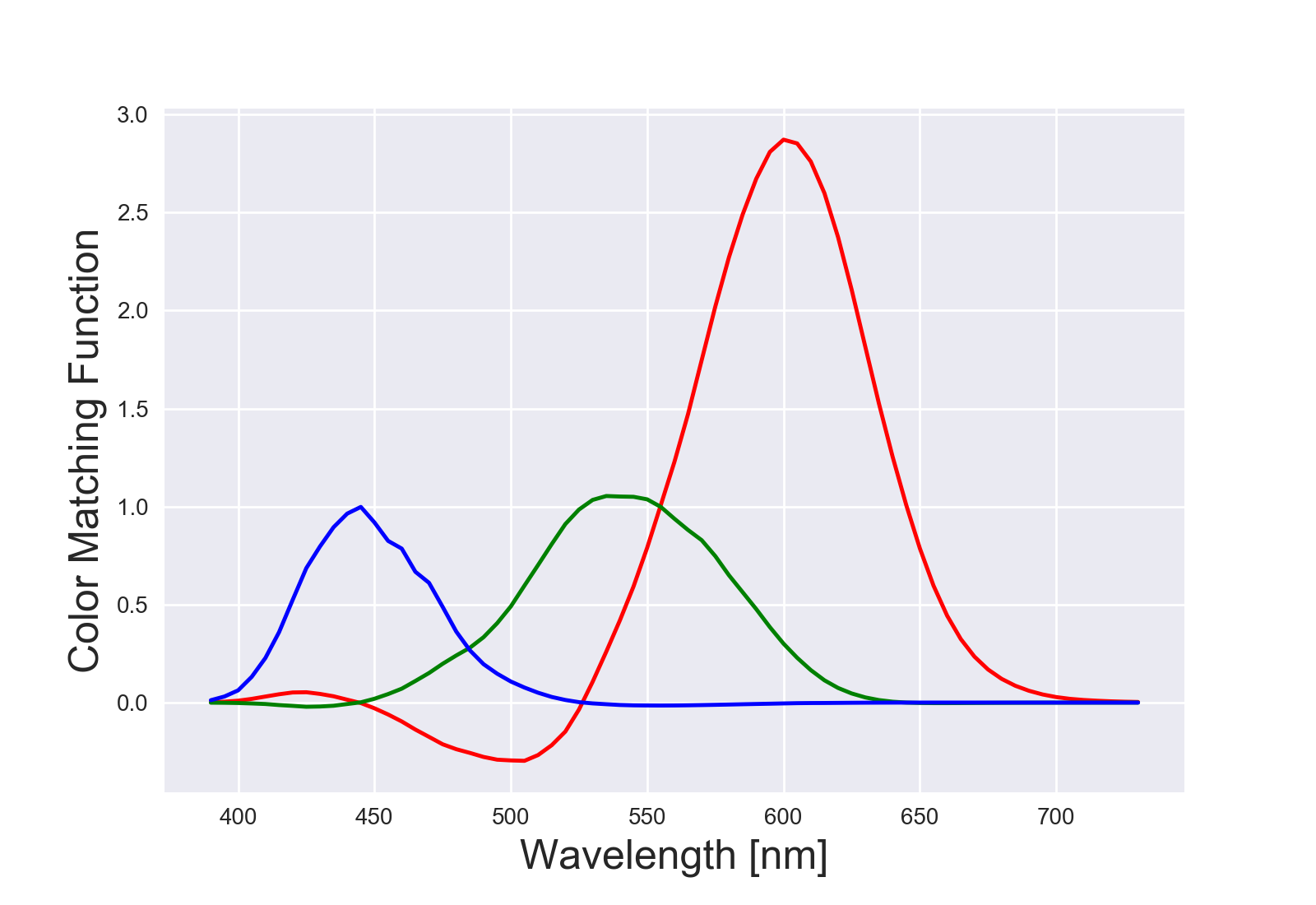

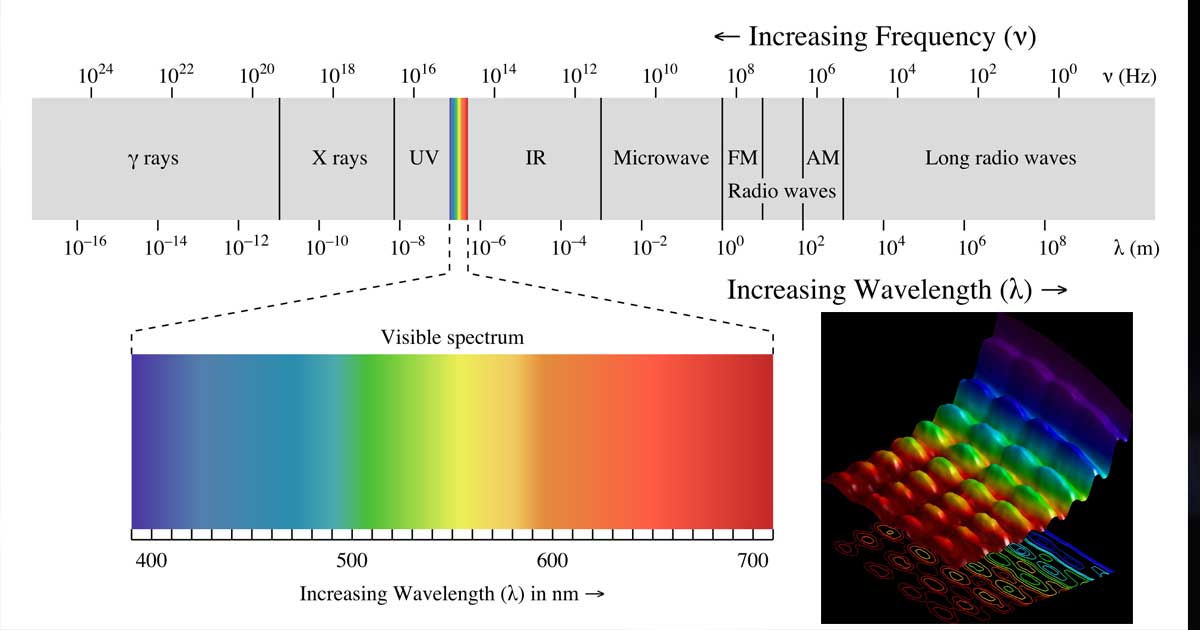

Color Matching Function

The R,G, & B cones have different levels of responsiveness to different wavelenghts of light.

Below shows how responsive each type of cone is to a specific wavelength of light.

here, you can think of this as how responsive your eye's cones are to different wavelengths. You can see that your R cone is a lot more sensitive then there rest, especially at high wavelengths.

Color Matching Function

The R,G, & B cones have different levels of responsiveness to different wavelenghts of light.

Below shows how responsive each type of cone is to a specific wavelength of light.

here, you can think of this as how responsive your eye's cones are to different wavelengths. You can see that your R cone is a lot more sensitive then there rest, especially at high wavelengths.

Color Matching Function

The R,G, & B cones have different levels of responsiveness to different wavelenghts of light.

Below shows how responsive each type of cone is to a specific wavelength of light.

Jupyter Notebook of Color Fundamentals

there is a lot more of this with links to research in this jupyter notebook

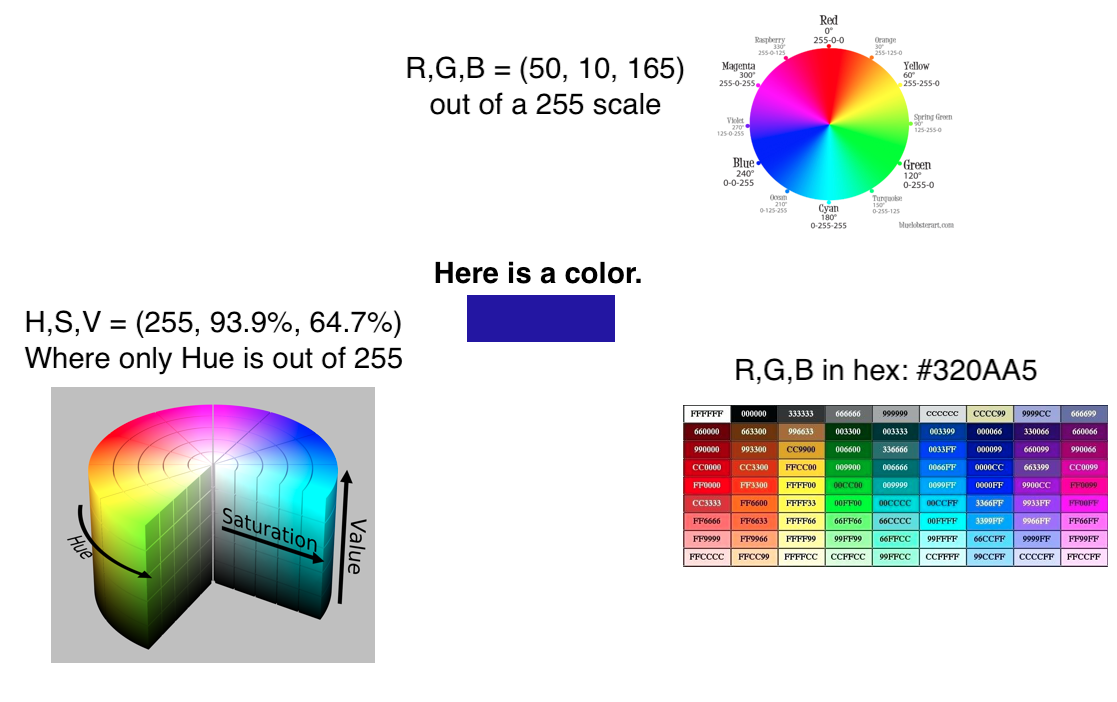

"Naming" Colors

so, we talk about how colors are named in different systems, and we'll cover the most basic here

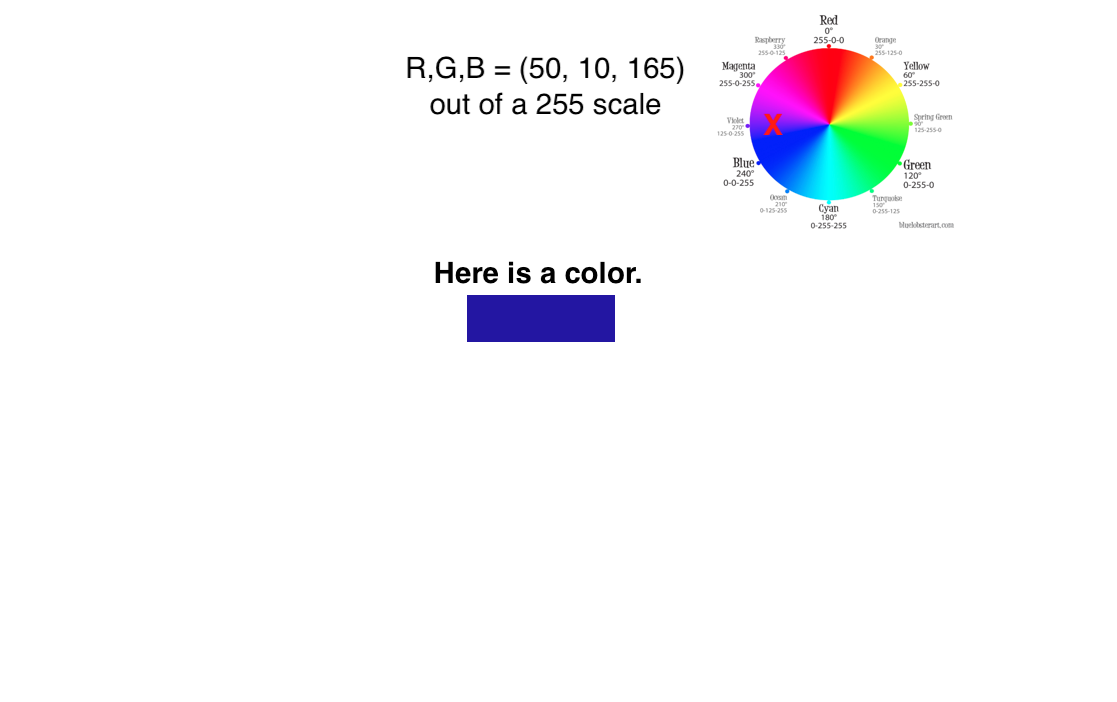

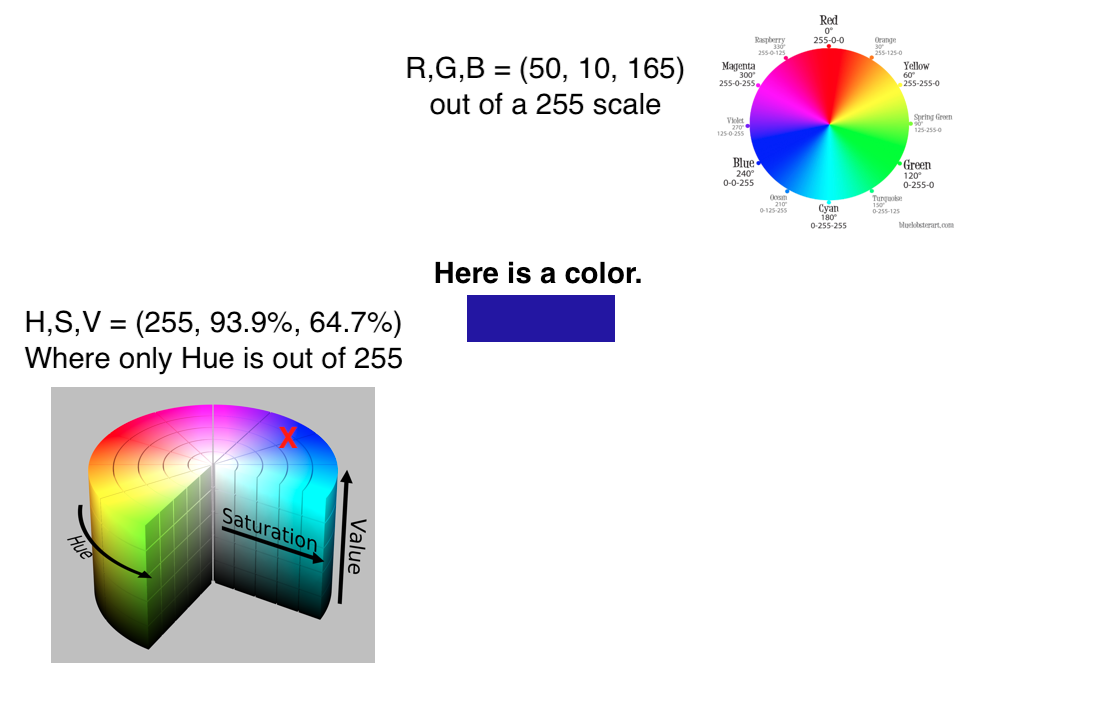

"Naming" Colors

since we have RGB rods and cones, we might think the most natural way to represent this is with RGB colors

This color wheel doesn't give an accurate depiction of all the colors in RGB space (since the space is actually 3d), but it is often what you'll see out in the real world, and its pretty easy to see where our example color lies.

"Naming" Colors

another representation is Hue, Saturation, and Value

This depiction of HSV is in 3D here, and while its easier to visualize how colors change in the space, its also hard to accurately mark where our specific one is.

"Naming" Colors

here is another example - you'll see these codes a lot of you do html programming, but its another way to specify colors with HEX numbers. You'll note our color isn't listed here, but in a longer table it would be.

Hexadecimal only shows 16 million colors, RGB as uncompressed floats can theoretically represent quite a bit more (but there's a limitation of what monitors can display)

R = 2^8 G = 2^8 B = 2^8

RGB = 2^24 = 16 million

hexadecimal = 16^6 = 16 million

"Naming" Colors: R,G,B Mapping

the mandrill image was an early color standardization image established by the Dept of Defense

Here we split it into its R, G, & B components

"Naming" Colors: R,G,B Mapping - Its limitations

sRGB - graphics RGB

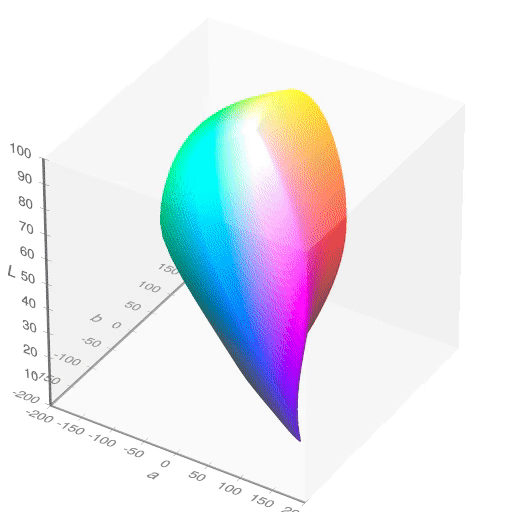

CIELAB - human RGB perception

this unified space of colors that works on most displays and printers is NOT the full range of human perception.

"Naming" Colors: HSV

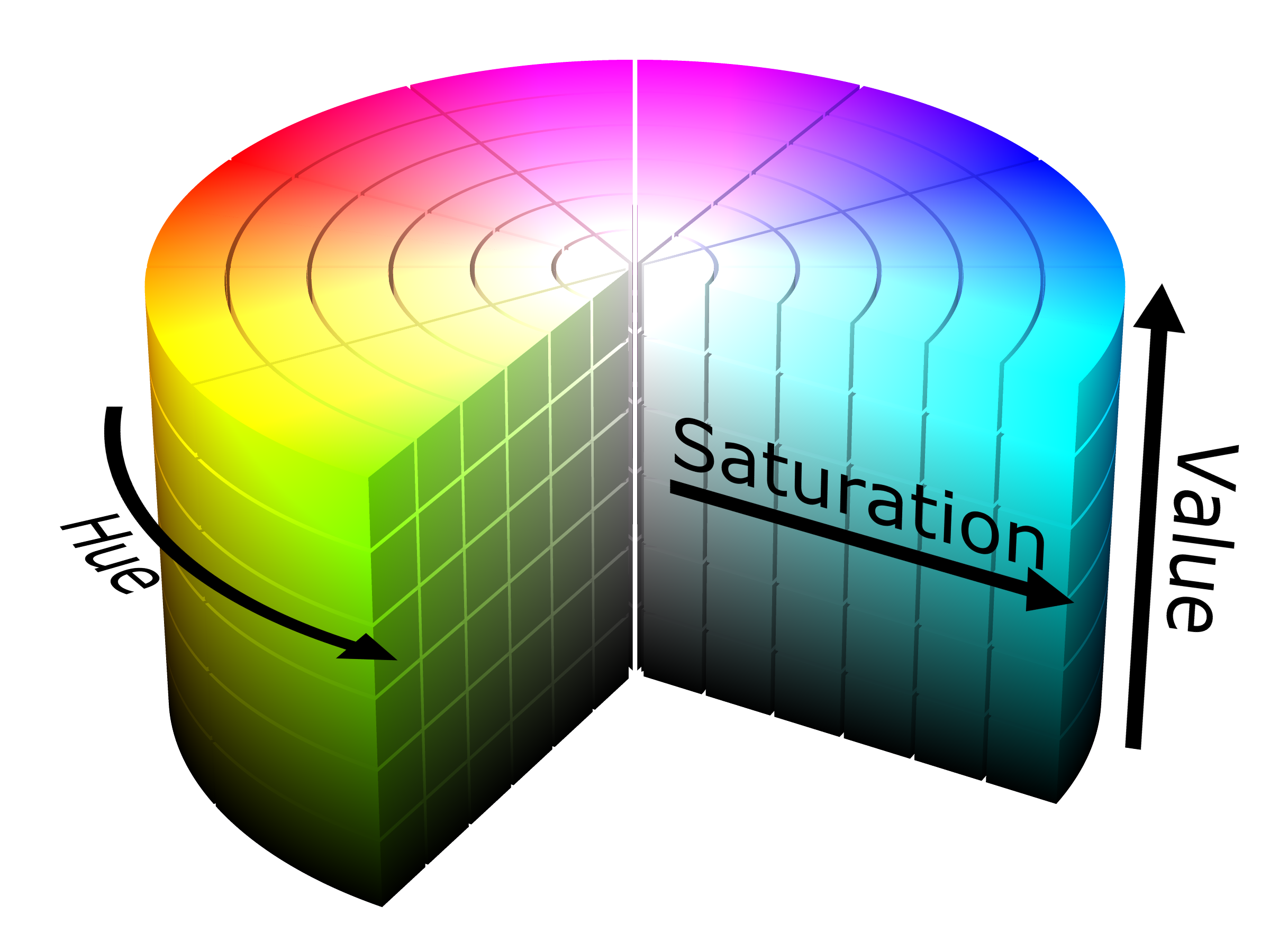

HSV Wheel

https://commons.wikimedia.org/wiki/File:HSV_color_solid_cylinder.png

you can see that saturation and value are linear axes while hue is cyclical.

"Naming" Colors: HSV

(Cycle is though (1) H to change color, (2) S to change to grayscale, (3) V black to white)

This video scans through different hues, which are the part of the rainbow you want

Then different saturations, which is how vibrant or gray the colors are

Then different values, which is how bright or dark the colors are.

Allow to run first and then comment.

"Naming" Colors: HSV

You might have actually played around with this system before if you've ever used a "color" picker app.

Here we see we have picked a "H" for Hue as red

We choose 50% saturation - i.e. how much of the color is in there where minimum is none of the color (gray)

We also choose 50% "L" which is sometimes called "V" for Luminiance which controls white-to-black

And here is one more channel = A for opacity. Note that "A" sort of overlaps with both Saturation and Luminance so its usually not used to encode anything if we are using the others.

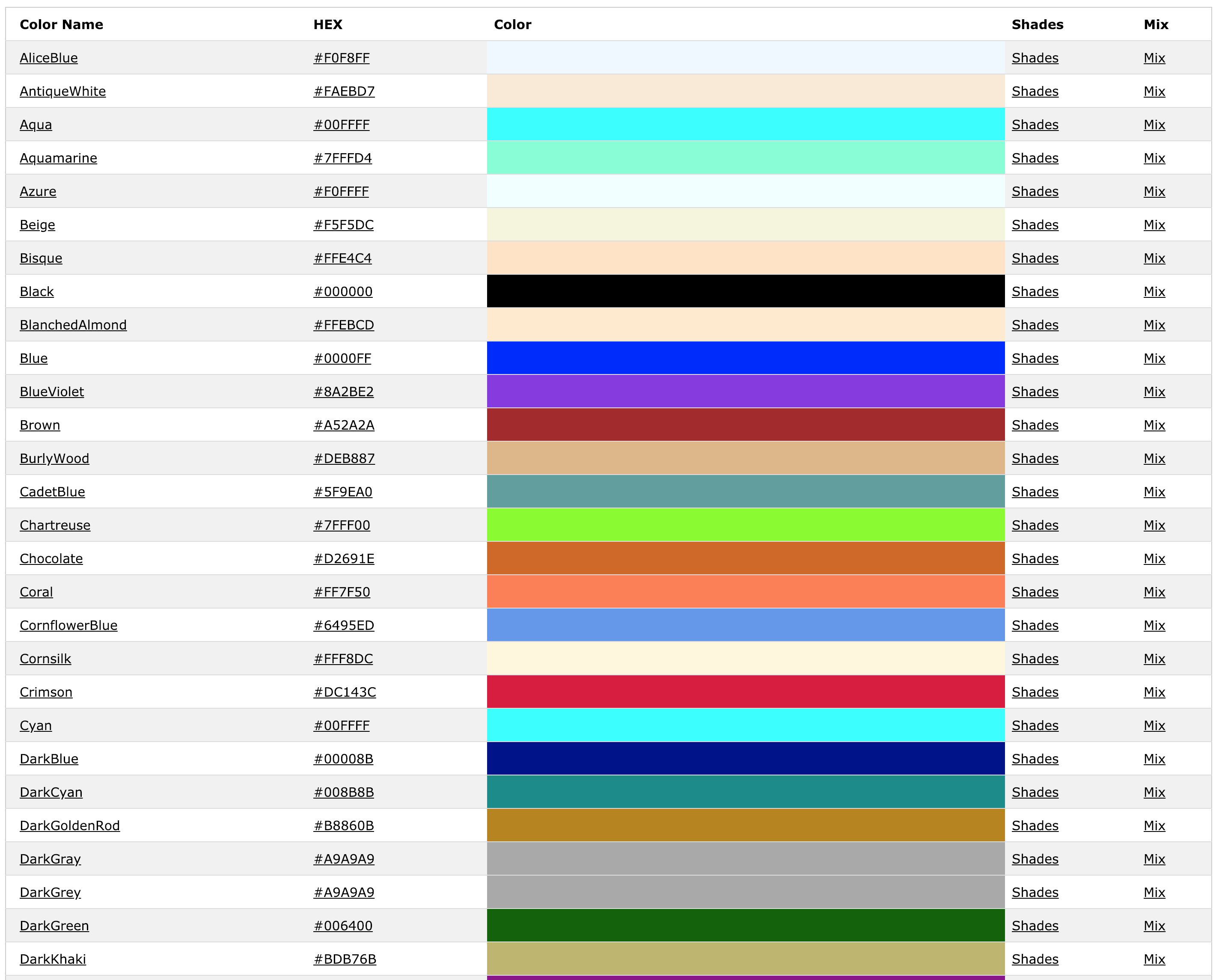

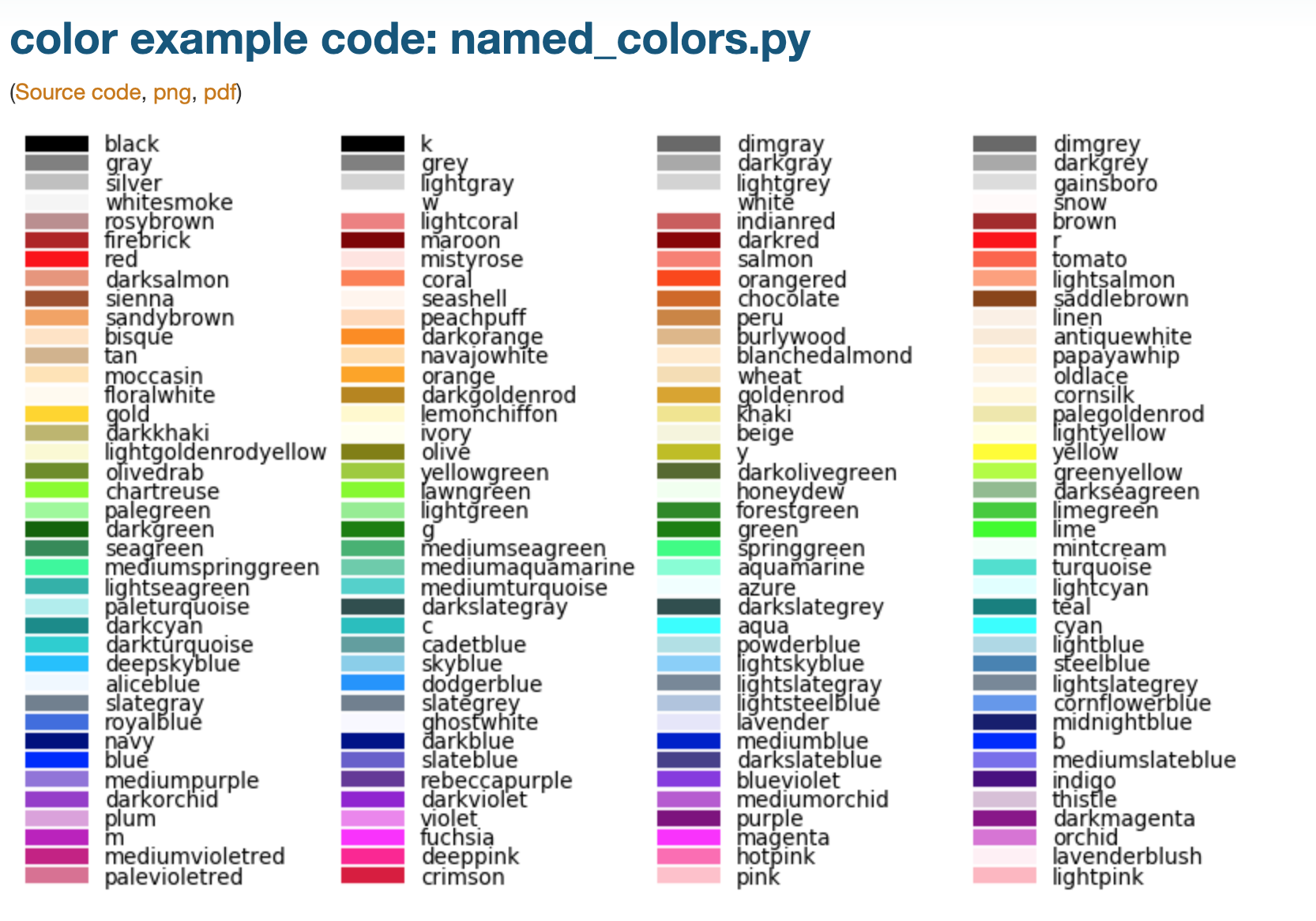

"Naming" Colors: Beyond HTML HEX - Specific Names

HTML	matplotlib

It's worth noting that "color words" are not consistent across languages or cultures. Color is a product of culture.

"Naming" Colors: Summary

Color spaces
- HSV (Hue, saturation, value)
- CIELAB
- sRGB, Adobe sRGB
RGB triplets, sometimes compressed into hexadecimel ("#00FFAA", etc)
List of colors by name
- Web
- matplotlib

coding environments will often provide "named" colors if you're more interested in simplicity than flexible design

HSV is typically a color space used by color designers.

sRGB "standard RGB" is a color space that was standardized to unify different monitors and printers.

CIELAB is the color space that covers the average of human vision.

Importance of Color

Which image has the red dot?

now we're gonna play a little game -- try to see how tough this is to see this dot

Importance of Color

Which image has the red dot?

Importance of Color

Which image has the red dot?

Importance of Color

Which image has the red dot?

Importance of Color

https://www.csc2.ncsu.edu/faculty/healey/PP/#jscript_search

Color makes use of our "preattentive" visual cortex processing power -- we are able to detect color before our attention focuses.

TOPIC 2: Color Maps

Color maps = Visual Encoding

Color maps encode a data attribute as a color.

Color maps = Visual Encoding

Color maps encode a data attribute as a color.

you can think of it like a paint by numbers

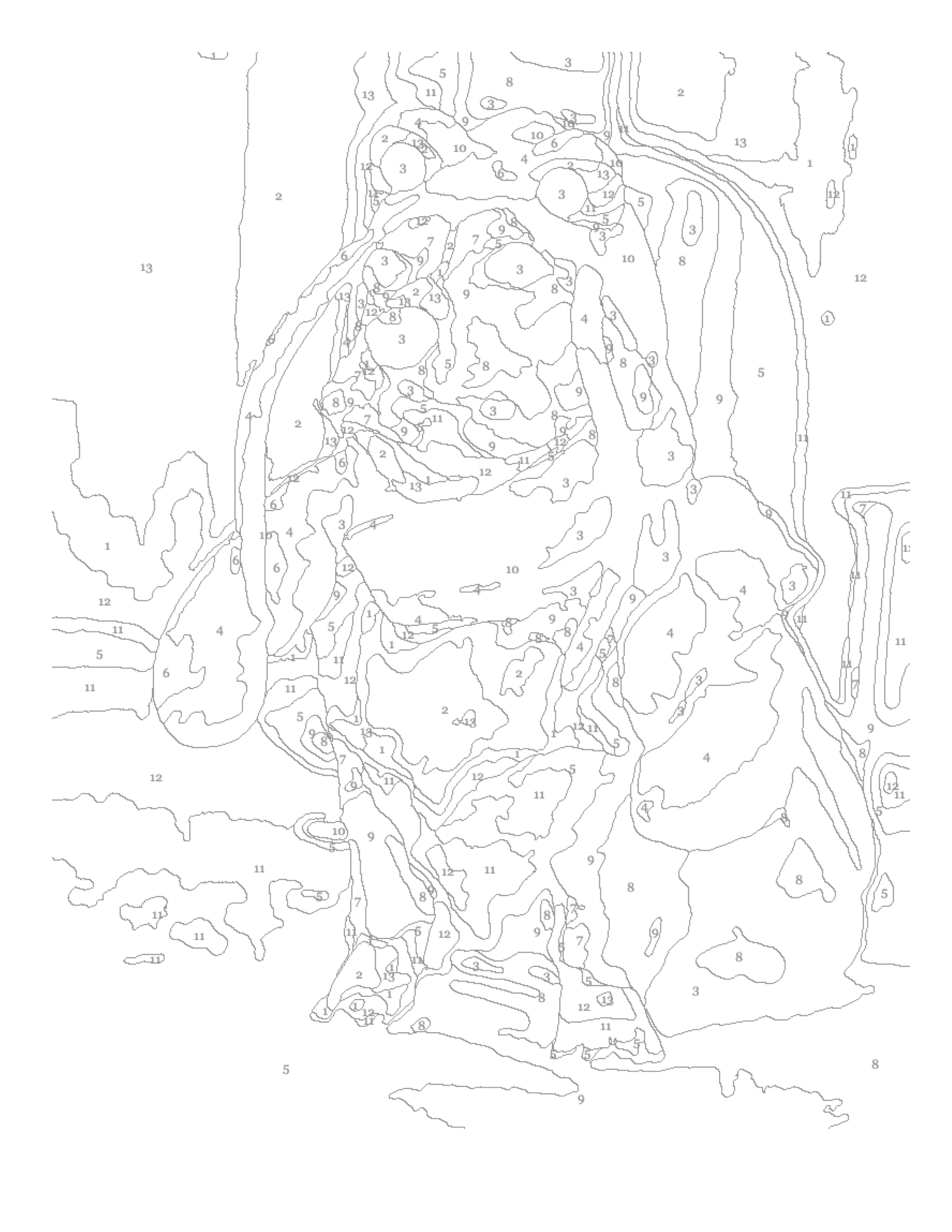

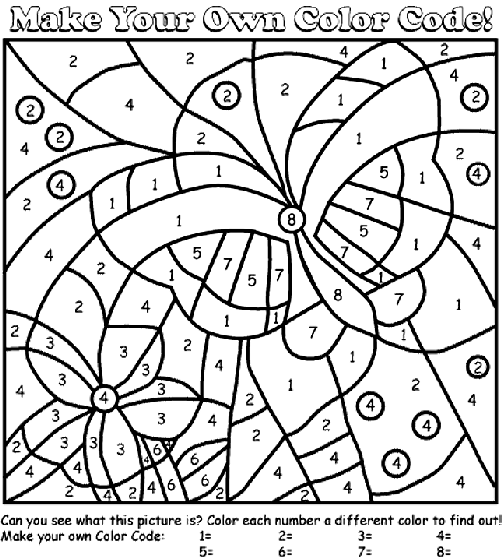

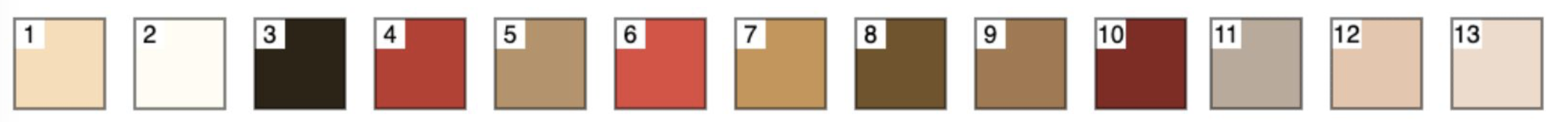

Here I give you outlines of sections of the page that have data values, here the numbers 1-13 and I assign them a "palette" of colors.

Color maps = Visual Encoding

Color maps encode a data attribute as a color.

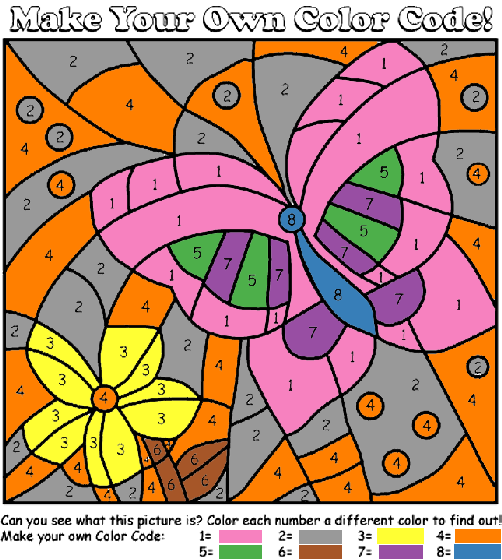

Then I "paint" these colors on to make an image from my data

Color maps = Visual Encoding

Color maps encode a data attribute as a color.

Colormap


Here I cheated a little bit and used a photo to generate my paint by numbers, so I get something back that looks like its photo

But note that these images are generated in very different ways

The colormap one was generated by a list of color values and instructions

The photo is generated by RGB color combinations at every pixel

Color Palettes

Brewer, 1999

different kinds of color palettes can be used to describe different types of data

Here is a nice way of mapping out our options. For example, binary (T/F or Y/N) is pretty easy to encode with 2 colors or luminance.

If we have 3 categories, we can choose different hues for qualatative data.

If we have sequential data, like height maps we can choose differences in Hues or luminance.

When we start combining them though, it can get a little more confusing.

Color Palettes

Resources:
- colorbrewer
- palettable (package)

there are a million websites that allow you to create color palettes

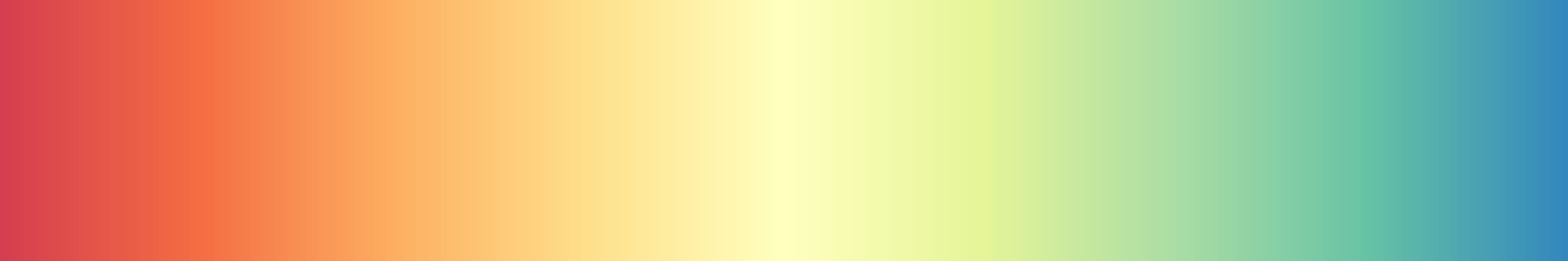

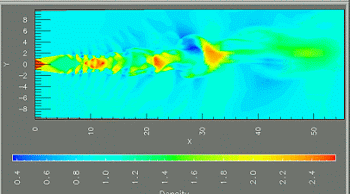

Ordered Colormaps

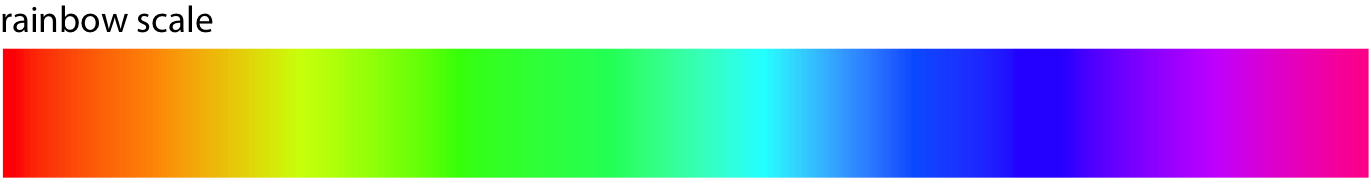

Historically, rainbows have been very popular.

which colors jump out at your the most?

Ordered Colormaps

Historically, rainbows have been very popular, but they can be misleading.

Here is that same colormap converted to gray scale, and our intuition is true - our eyes are drawn to the luminacne values here, not only the hues

Ordered Colormaps

Historically, rainbows have been very popular, but they can be misleading.

"Fixes" to the rainbow colormap are only so-so.

even if we try to make a perceptually uniform colormap, the results are underwhelming -- the "better" rainbow colormap looks a little muted and drab

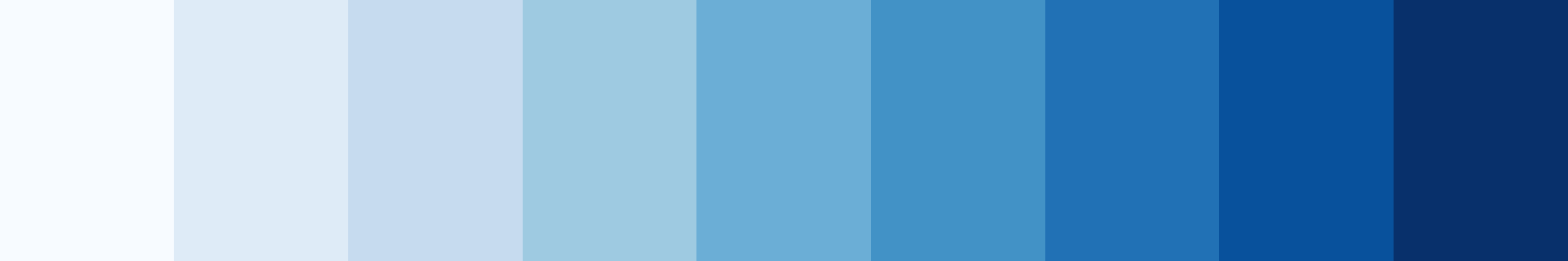

Ordered: Sequential Colormaps

one thing we can due is choose a hue and change the saturation or luminance -- here luminance

these are also known as monochromatic and are a subset of ordered colormaps

Here, the hue doesn't change, but the value (luminance) and the saturation do

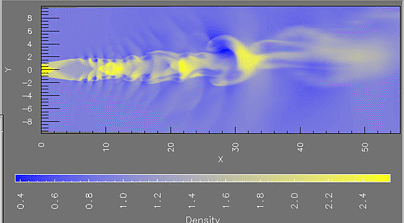

Diverging Colormaps

this shows you that different colors in the rainbow have different perceived brightness.

The outsides of this color map get darker while the center is brighter.

Ordered Colormaps

Combinations of color can pick out different features at different scales.

The differnet colormaps pick out changes at different scales. The colormap with more hues heighlights the finer details of this simulation, while the colormap with only 2 hues shows off the larger scale structure.

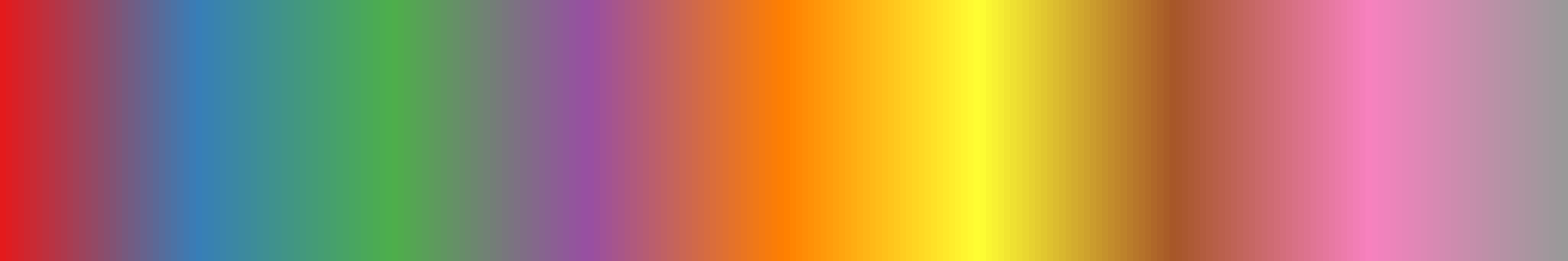

Qualitative Colormaps

The blended areas of the continuous map here are kind of gross looking. This kind of random color map is best for categorical data that is NOT continuous.

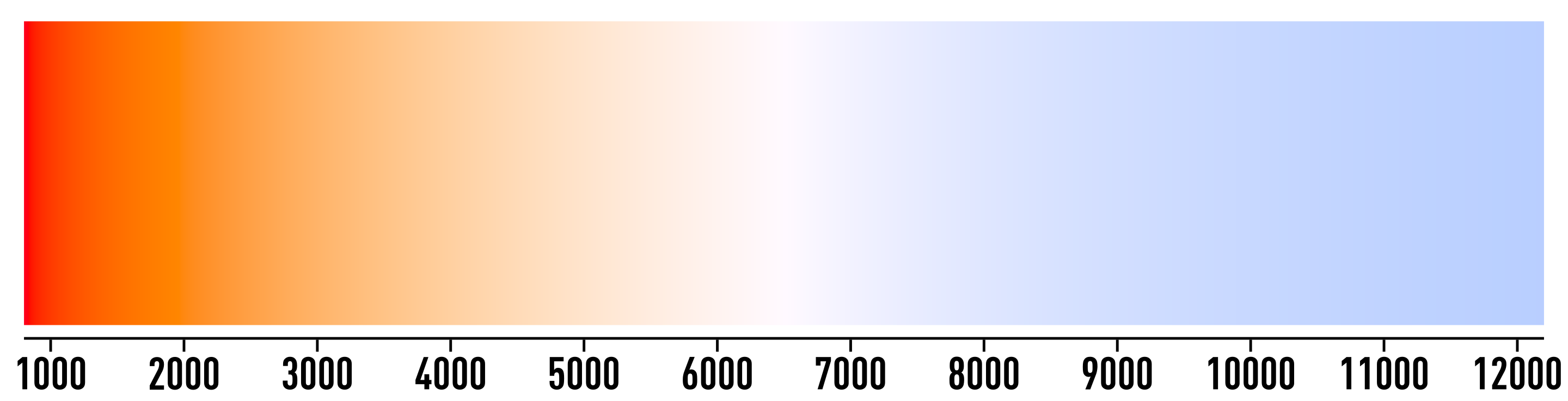

Color Meaning

Which end of this is hot and which end is cold? What do red and blue mean?

red in the USA is bravery, but red in China is revolution

green in the western world is Christmas, but green in the eastern world is Islam

You're not always picking colors relative to each other, but relative to culture as well.

Color Meaning

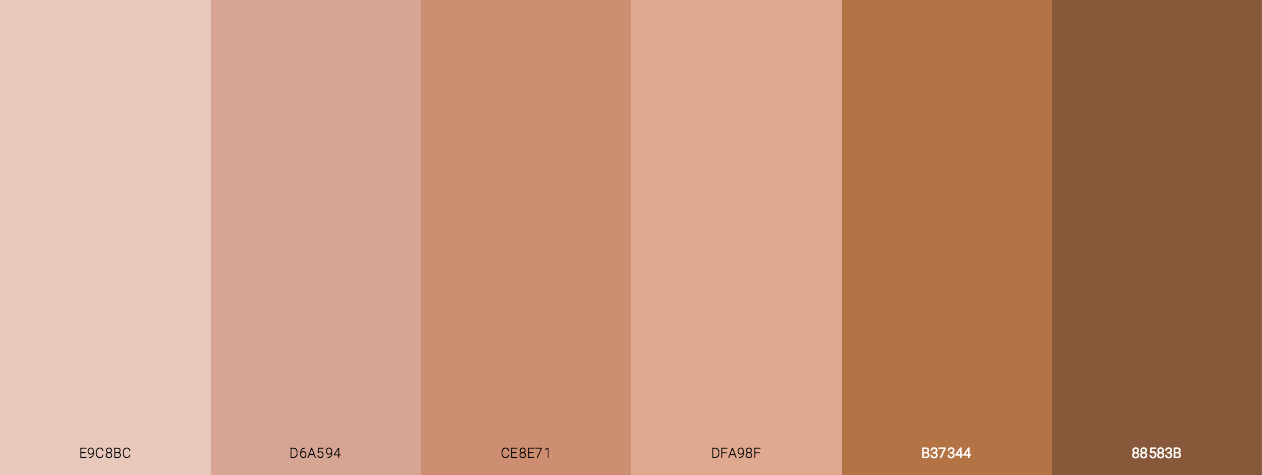

Human skin color is a particularly SENSITIVE area of color psychology. Western culture often treats dark colors as "mysterious" or "evil" and this is largely rooted in a history of racial bias.

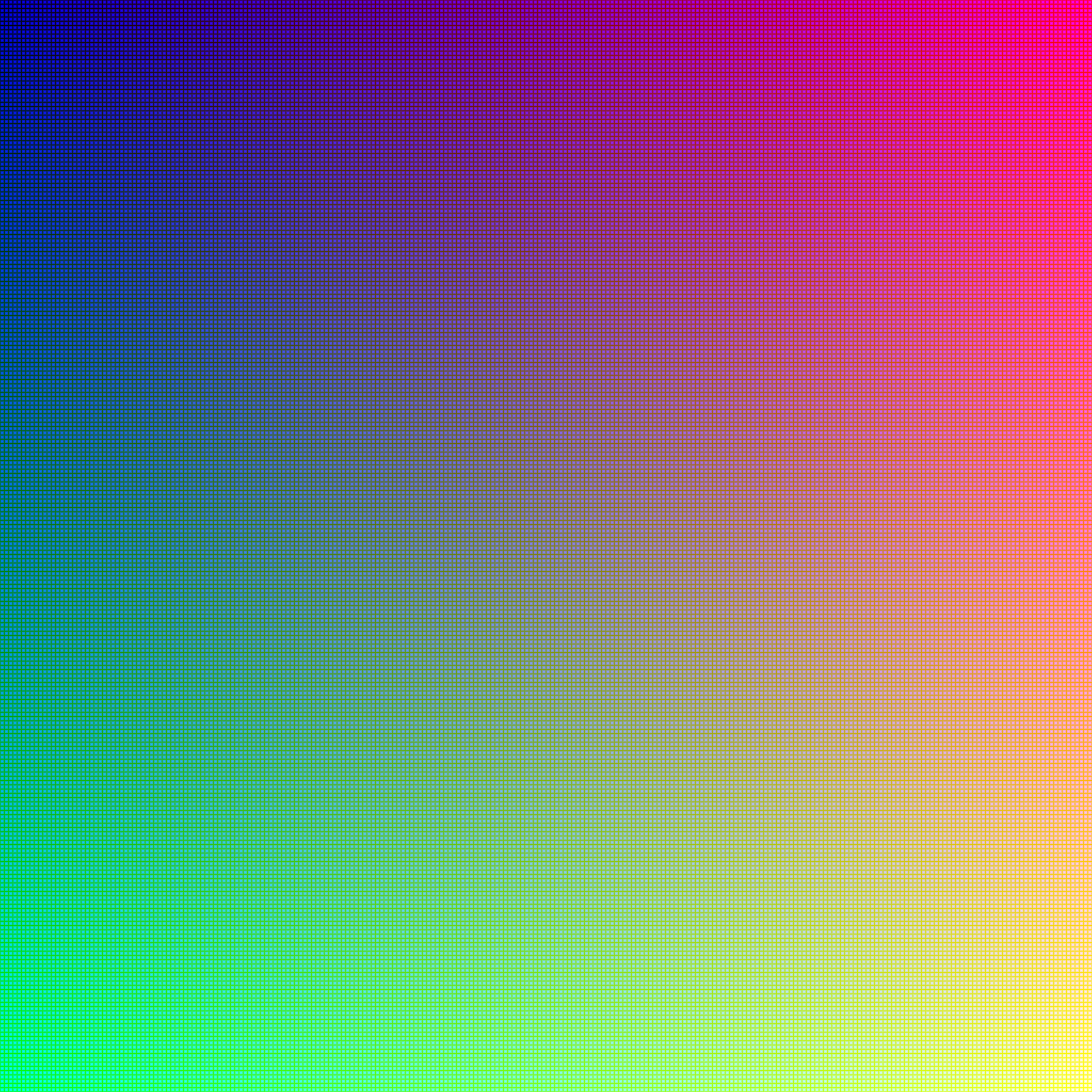

Just for fun: It's full of colors

https://commons.wikimedia.org/wiki/File:16777216colors.png

This grid is one way to show all the 16 million colors. They kind of get blurred out when looking at the image in this size, but if you zoom in at the link provided, you can see every pixel from red to green to blue, and from black to white.

Pink: Is it a color?

Or, for that matter, where is brown or cyan in the spectrum?

https://gizmodo.com/if-the-color-pink-doesnt-scientifically-exist-why-can-1464266788

just a point of interest, what wavelength would you say magenta (or purple) is?

Palette Mapping

Assign each value to a specific color or element.

Palette Mapping

Palette Mapping

Color Mapping: Normalizing Our Data

$f(v) \rightarrow (R, G, B)$

We can also re-map:

$f(v') \rightarrow (R, G, B)$

$v' = f(v)$

For instance, with logs or squares.

We can fit our continuous distribution linearly to a color map - so a low data value is at the beginning of the color map, a high value is at the top, and a middle value is halfway up the map.

Or we can remap it with exponents, or other mathematical operations.

Color Mapping: Linear Normalization of Data

We map from a range of values to (0, 1):

$ v' = (v - v_0)/(v_1 - v_0) $

in order to get the data values to line up with the color bar - which goes from 0 to 1 - we have to transform our data into a range of 0 to 1. This can be as easy as dividing all value by the largest value, or we can do fancier things.

Color Mapping: RGB Components of Some Colormaps

Color Mapping: RGB Components of Some Colormaps

Color Mapping: RGB Components of Some Colormaps

Color Mapping: RGB Components of Some Colormaps

Color Mapping: RGB Components of Some Colormaps

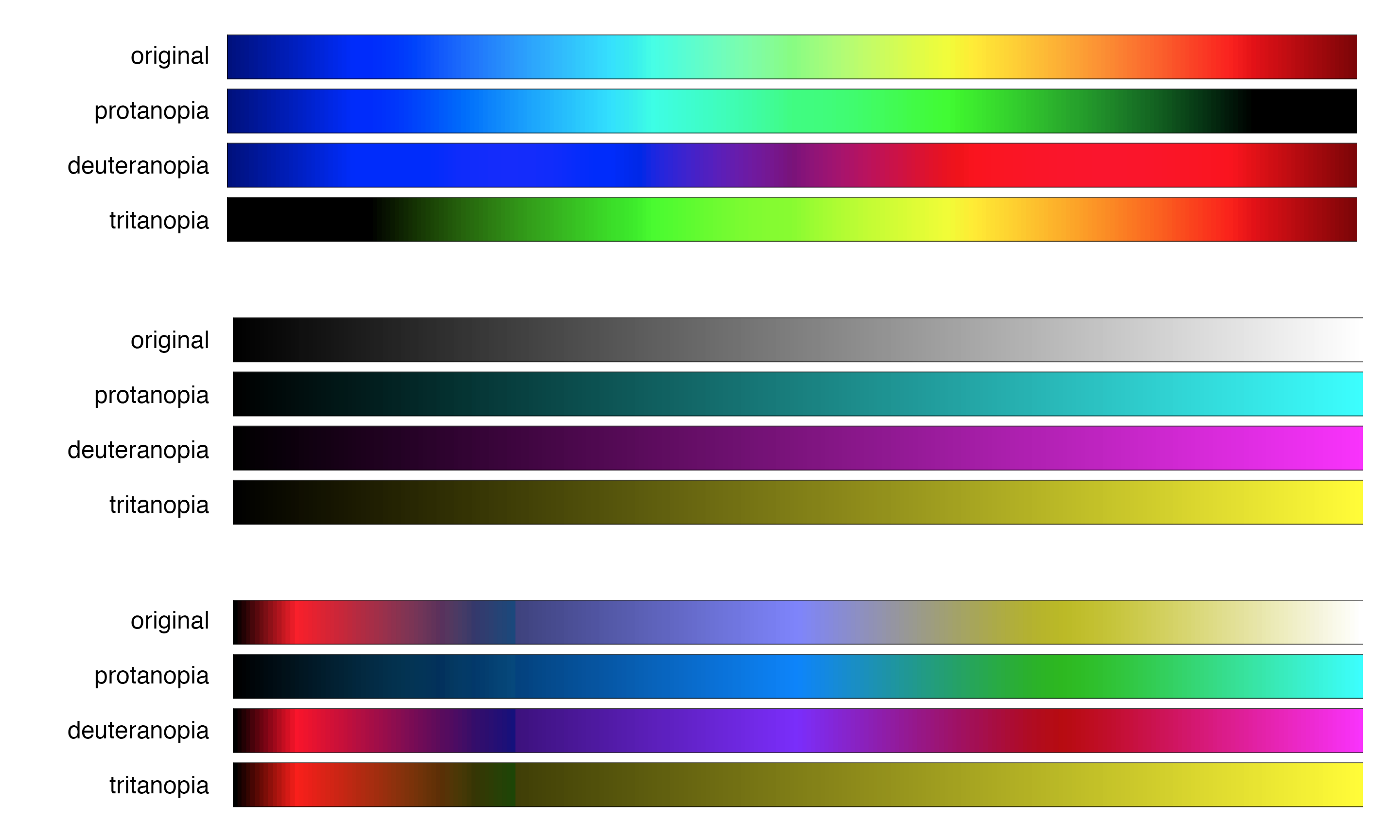

Color Blindness

these are not the only types of color blindness, just the types where one of the three types of cone are missing. Sometimes that third cone is just "anomalous", and sometimes more than one cone is missing, but it's much rarer.

You can see that designing for a color blind person can be difficult if you put all the information into one cone. You catch a wider audience by using the colors between the cones, like yellow, cyan, and magenta.

protanopia = no red deuteranopia = no green trianopia = no blue

Color Blindness

http://enchroma.com/test/instructions/

TOPIC 3: Other methods of visual encoding

Other methods of visual encoding

Size

Density

Curvature

Check out sc2.ncsu.edu/faculty/healey/PP for more examples and research.

Other methods of visual encoding

Motion is another channel, but is very attention-grabbing.

Flicker

Velocity

Direction

Check out sc2.ncsu.edu/faculty/healey/PP for more examples and research.

To Python!
